Colorado Airport/Transit Best Project: DEN Gate Apron Project

Denver International Airport is the nation’s fifth busiest. Over the years, concrete at nine gates in two concourses had deteriorated, allowing water to pond and seep into the basement.

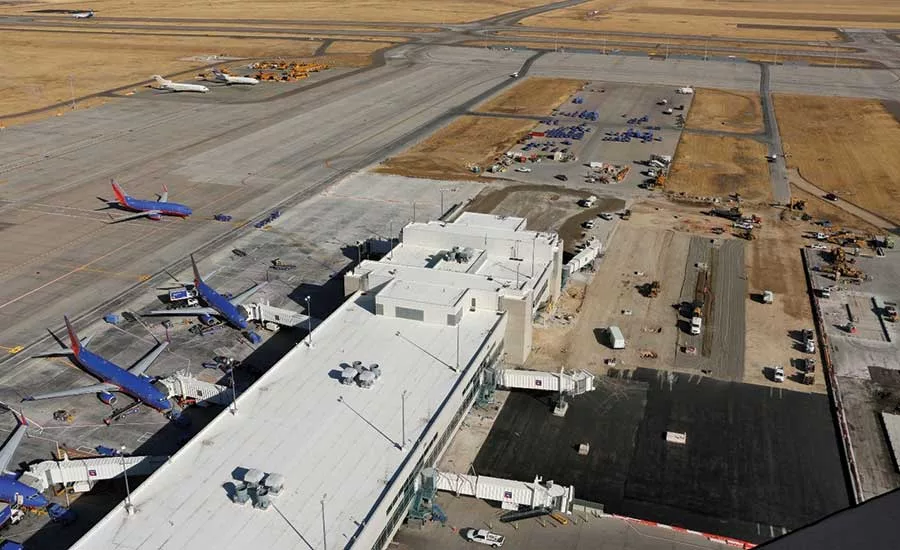

PHOTO COURTESY OF FLATIRON CONSTRUCTORS INC.

Denver Airport Gate Apron Rehab Project
Denver
Best Project

Owner: Denver International Airport
Lead Design/Civil Engineer: Jacobs
General Contractor: Flatiron Constructors Inc.
Subcontractors: Scott Contracting Inc.; ARS Cos.; Reliable; Brannan Paving Co.; Marquez & Sons Trucking; American Signs; Paragon; Trautman & Shreve Inc.; MCC Civil; JM Bangert Inc.; Vine Laboratories

Denver International Airport is the nation’s fifth busiest. Over the years, concrete at nine gates in two concourses had deteriorated, allowing water to pond and seep into the basement. At the same time, airport officials noted the need for expansion and asked the contractor to create two additional gate aprons for future flights. Also needed: upgrades to jet bridges, utilities and the jet-fueling system.

The work included demolition and removal of 44,523 sq yd of old pavement, which was hauled off site and crushed into aggregate for future pavement, saving an estimated $500,000. The paving included Portland cement concrete, hot-mix asphalt and asphalt-treated permeable base. But soon after the first concrete was placed, it began to shrink and crack. The project team investigated and found the culprit—the summer heat, which had raised the temperature of the subgrade to 120 degrees Fahrenheit.

And as temperatures cooled, the newly placed concrete shrank and cracked. The paving contractor, quality experts and the concrete-mix designer worked together to develop new curing and placement processes that eliminated the cracking.

Those processes worked, but the project was now off schedule. In the contractor’s words, it was “all hands on deck,” with crews working day and night to get the schedule back on track. Even without the concrete issues, completing a major project with 16 subcontractors at an operating airport was complex, to say the least.
