Product Snapshot: Light Tower and Fuel Truck

The Pelican 9600 LED modular light provides 3,000 lumens of illumination and features 14 LEDs per lamp head.

The 21LC1050 flat-top tower crane is available in three models with maximum loads of 25, 37.5 and 50 metric tons and can be configured with a reach from 30 to 80 meters.

The Thunder Creek multi-tank upfit allows for bulk diesel fuel to be hauled over the road without a CDL or HAZMAT endorsement.

Cat’s side discharge bucket is designed for use with compact loaders, track loaders and skid steer loaders.

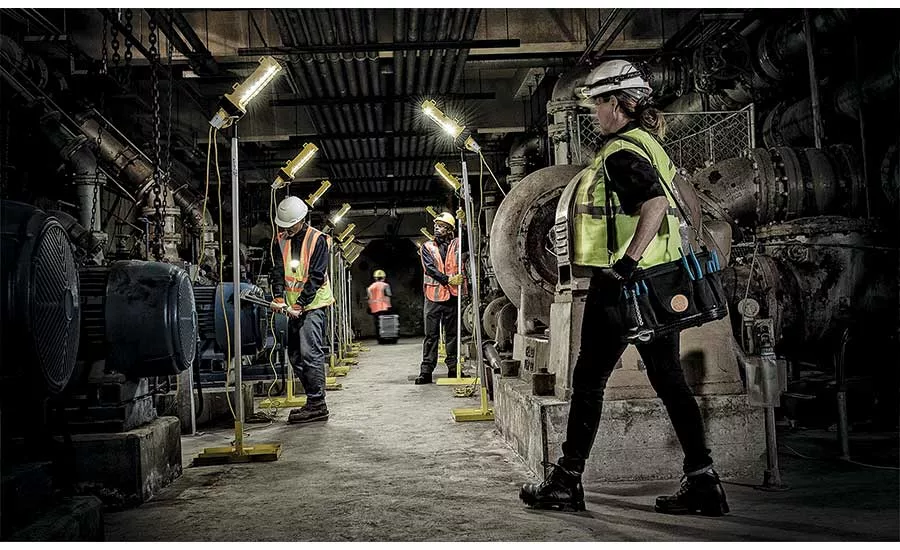

Light Tower: Stackable and Portable

The Pelican 9600 LED modular light provides 3,000 lumens of illumination and features 14 LEDs per lamp head. Up to 17 light towers can be run from a single 110V power source. The lamps can be detached from the stand and hung from overhead or wall mounts. The 9600 light features a durable case with recessed polycarbonate lenses and internal shock supports. Each light tower is collapsible and stackable for easy transport to and from the jobsite. Pelican Products; www.pelican.com

Flat-Top Crane: Modular Design

The 21LC1050 flat-top tower crane is available in three models with maximum loads of 25, 37.5 and 50 metric tons and can be configured with a reach from 30 to 80 meters. The crane’s counterjib features modular sections that allow for up to six different configurations for greater flexibility. Like other COMANSA cranes, the 21LC1050 comes with the Power Lift system that allows for a 10% improvement to the lift diagram without exceeding the crane’s nominal capacity. COMANSA; www.comansa.com

Diesel Transport: Medium-Duty Fuel Truck

The Thunder Creek multi-tank upfit allows for bulk diesel fuel to be hauled over the road without a CDL or HAZMAT endorsement. The truck comes with eight 115-gallon tanks, or a 920-gallon total capacity, and is compatible with the Class 5 Ford F550 chassis. Future models will be compatible with other Class 5 and Class 6 trucks from other manufacturers. It is available with or without a PTO option and features a rear-mounted utility box that fully encloses the diesel pump and manifold system. Other options include a range of meters for tracking diesel usage. Thunder Creek Equipment; www.thundercreek.com

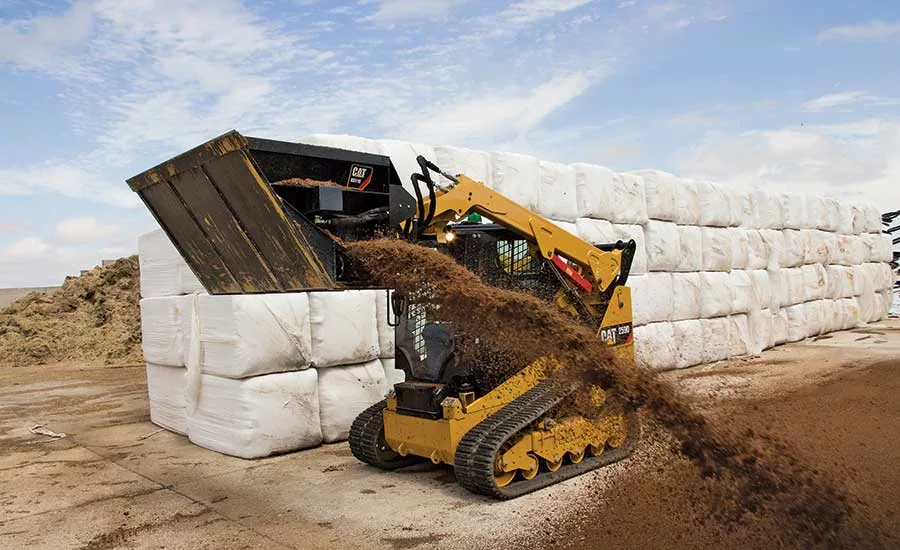

Side Discharge Bucket: Works With Heavier Materials

Cat’s side discharge bucket is designed for use with compact loaders, track loaders and skid steer loaders. The bucket can be used to collect loose materials such as soil, sand or sawdust and then discharge it through a side door using a belt-style conveyor. A built-in agitator keeps materials flowing. The speed and volume of discharged material can be controlled by adjusting the opening and angle of the side doors. The conveyor can handle heavier materials such as wet sand and soils, and a baffle around the belt prevents material buildup or clogging. Caterpillar Inc.; www.cat.com

Manufacturers can send information on new products to ENR.products@enr.com.
