Product Snapshot: Telehandler and Asphalt Roller

The Extendo 1056X telehandler has a four-section boom with a lift capacity of 10,000 lb, a 56-ft maximum lift height and a maximum forward reach of 40 ft.

The seven models in Case’s E series of compact vibratory rollers have either a double drum version or front drum/rear pneumatic tire combination.

The RT7R rubber track carrier can dump up to 7 tons from any position on its 360° rotating frame.

The 12-amp charger for the DEWALT 20V MAX and FLEXVOLT lithium-ion battery systems features multiple LED indicators to show charging status.

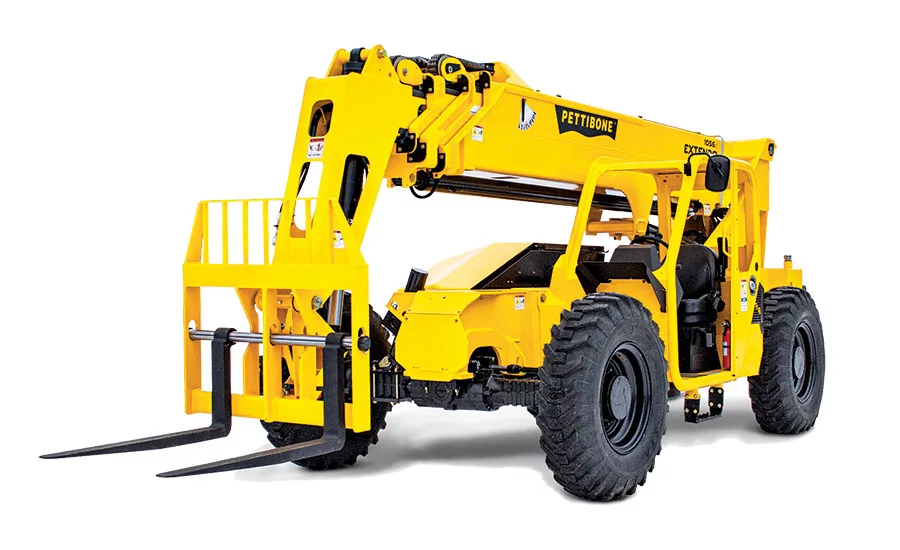

Telehandler: Longer Service Intervals

The Extendo 1056X telehandler has a four-section boom with a lift capacity of 10,000 lb, a 56-ft maximum lift height and a maximum forward reach of 40 ft. A single lift cylinder design gives the operator better sight lines of the load. The telehandler’s boom features boom overlap and a bottom-mounted external extend cylinder to boost the life of wear pads. The Extendo 1056X is powered by a 74-hp, Tier 4 Final engine that does not require diesel exhaust fluid. Pettibone; www.gopettibone.com

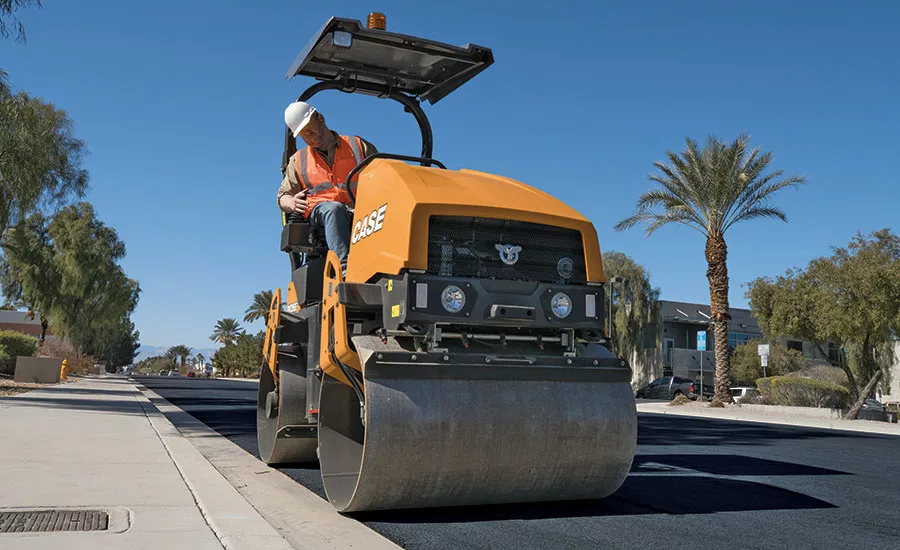

Vibratory Roller: New Operator Features

The seven models in Case’s E series of compact vibratory rollers have either a double drum version or front drum/rear pneumatic tire combination. Drum widths range from 39 in. to 54 in., with no overhang. The rollers have an electronic travel lever with added functions, including RPM and drive settings, as well as a parking brake and sprinkler system controls. A mode selector can toggle between loading, working and transport modes.
Case Construction Equipment; www.casece.com

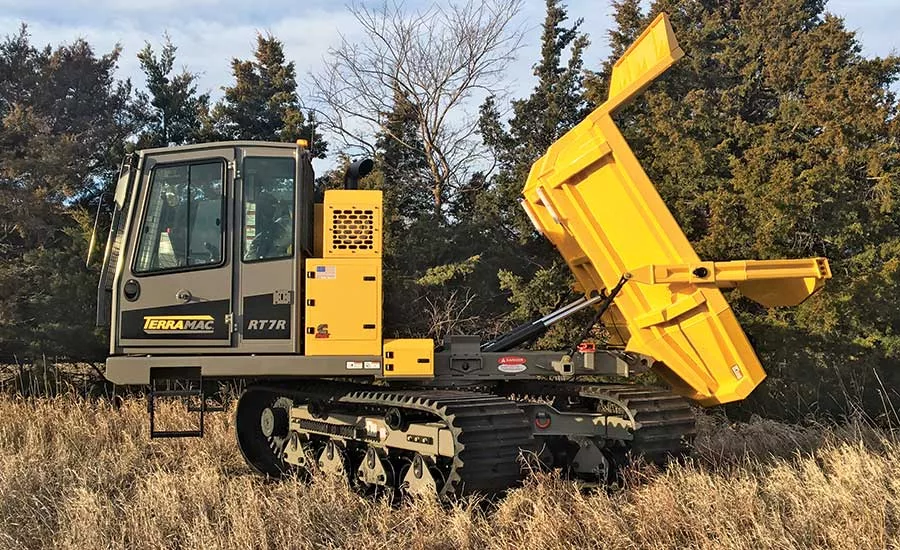

Crawler Carrier: Full-Circle Rotation

The RT7R rubber track carrier can dump up to 7 tons from any position on its 360° rotating frame. It is Terramac’s most compact offering of this type, making it ideal for tight or hard-to-access locations, according to the manufacturer. The rubber tracks, combined with a ground pressure of only 5.5 psi when loaded allow it to operate in a number of different conditions, including on steep or wet ground, as well as in environmentally sensitive locations. It’s powered by a 165-hp, 12-V engine that meets Tier 4 Final emissions standards. Terramac; www.terramac.com

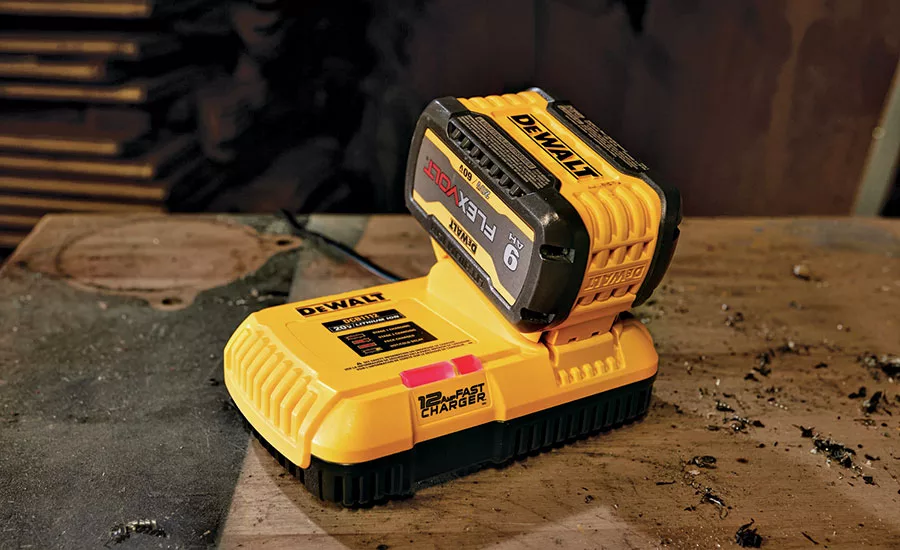

Fast Charger: Reach 80% in Only 45 Minutes

The 12-amp charger for the DEWALT 20V MAX and FLEXVOLT lithium-ion battery systems features multiple LED indicators to show charging status. The Stage 1 indicator will signal when a battery is 80% charged; Stage 2 indicates the battery is fully charged. It will take approximately 45 minutes for a battery to reach 80% charge, according to the manufacturer. The charger comes with a latch for safer repositioning when a battery is charging. It also boasts fan-assisted cooling and UL-compliant double insulation. DeWalt; www.dewalt.com

Manufacturers can send information on new products to ENR.products@enr.com.
