Product Snapshot: Jobsite Camera and Asphalt Compactor

The GigapixelCam X2 robotic camera works over 4G networks.

The DD128C compactor is powered by a 110-kW/148-hp Volvo D4 Tier 4 Final engine, with an engine operating speed of 1,850 rpm in work mode.

The 342-XL Press Tool can press copper, stainless steel and carbon steel pipe ranging from 1/2 in. to 4 in. and PEX pipe between 1/2 in. and 2 in.

The 20V MAX XR 7¼-in. circular saw features a brushless motor.

Jobsite Camera: Multiple Capabilities

The GigapixelCam X2 robotic camera works over 4G networks. It can capture live 4K video with a wide-angle zoom lens as well as 360°, 5-gigapixel multilayered panoramas. It can also take individual 10-megapixel shots. The X2 can also act as a security camera, with intelligent monitoring and motion-detection alerts. The camera can be integrated with BIM software, with camera movement synced with model navigation. The camera is IP66/IP67 rated for use in all weather; an optional wiper is also available. Earthcam; www.earthcam.com

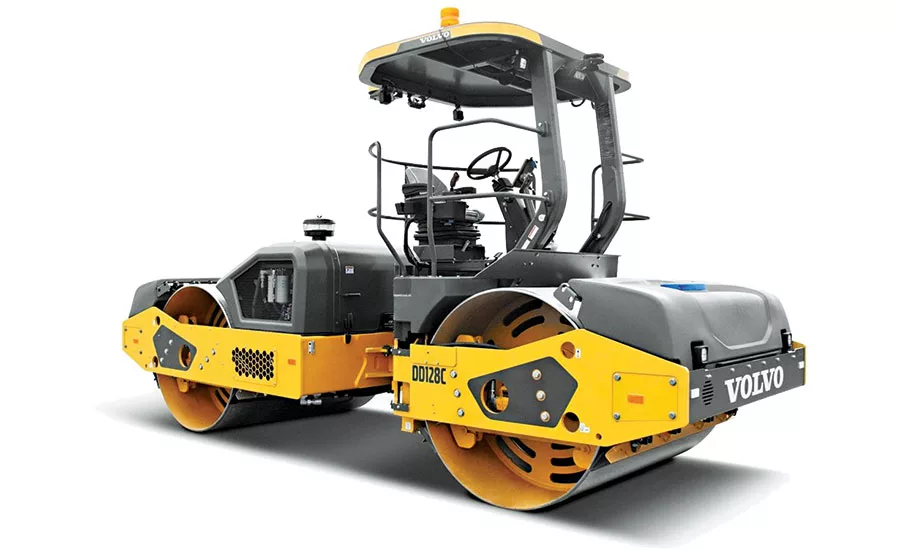

Asphalt Compactor: Automatic Adjustment

The DD128C compactor is powered by a 110-kW/148-hp Volvo D4 Tier 4 Final engine, with an engine operating speed of 1,850 rpm in work mode. Auto-idling and auto-engine shutdown features are available as an option. The compactor has a 79-in.-wide drum with chamfer and radii drum edges, a 55-in.-dia drum with auto-reversing eccentrics and an automatic drum wetting system. Amplitude for the eccentric system ranges from 0.003 in. to 0.03 in. The vibration frequency automatically adjusts to the highest available vpm for the amplitude setting. Volvo Construction Equipment; www.volvoce.com

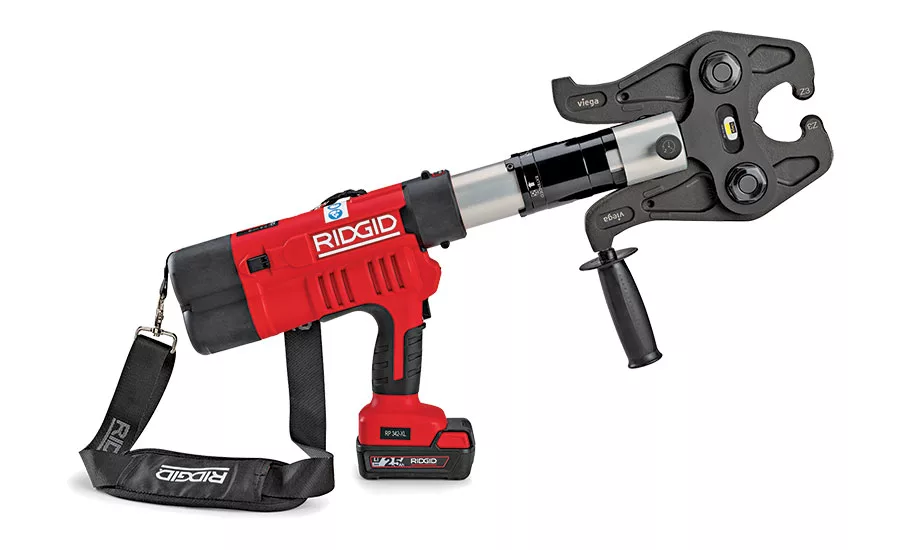

Cordless Press Tool: Wide Range of Applications

The 342-XL Press Tool can press copper, stainless steel and carbon steel pipe ranging from ∏ in. to 4 in. and PEX pipe between ∏ in. and 2 in. in less than 12 seconds, according to the manufacturer. A QuickSwitch feature allows the tool to toggle between standard and extended applications, and an LED light assists with low-light situations. It weighs 10.8 lb without a battery. The tool is compatible with RIDGID’s entire Standard 32kN Press Tool accessory line. RIDGID; www.ridgid.com

Circular Saw: Brushless Motor

The 20V MAX XR 7¼-in. circular saw features a brushless motor. It’s powered by an included 8-Ah lithium-ion battery. The 7.9-lb saw has a maximum cut depth of 2 in. at a 45° angle and 29⁄16 in. at a 90° angle. Bevel capacity ranges from 0° to 57°. An electric brake stops the blade once the trigger is released. The tool features POWER DETECT, which can draw extra power from high-capacity 20V MAX XR batteries for more demanding cuts. DEWALT; www.dewalt.com

Manufacturers can send information on new products to ENR.products@enr.com.
